• Automated digital benchtop IFA analyzer with small footprint
• ANA / ANCA pattern recognition and intensity evaluation of processed slides
• AI-based software
• ANA / ANCA titer determination from only one standard sample dilution
• Imaging of tissue sections (e.g. EmA, …)
• CLIFT for determination of antibodies against dsDNA
• Quantification of antibody activities in U/mL or IU/mL using the CytoBead® technology
• Results in 35 seconds*
• User-friendly touch screen monitor
• Archiving of results for quality assured data management
• Export of all relevant results in pdf- or xls-file format
• Bidirectional LIS Connectivity
• Connectivitty to pipettor (e.g. AP16 IF ELITE)
4450 – akiron® NEO
Autoimmunity, Diagnostics, Systems

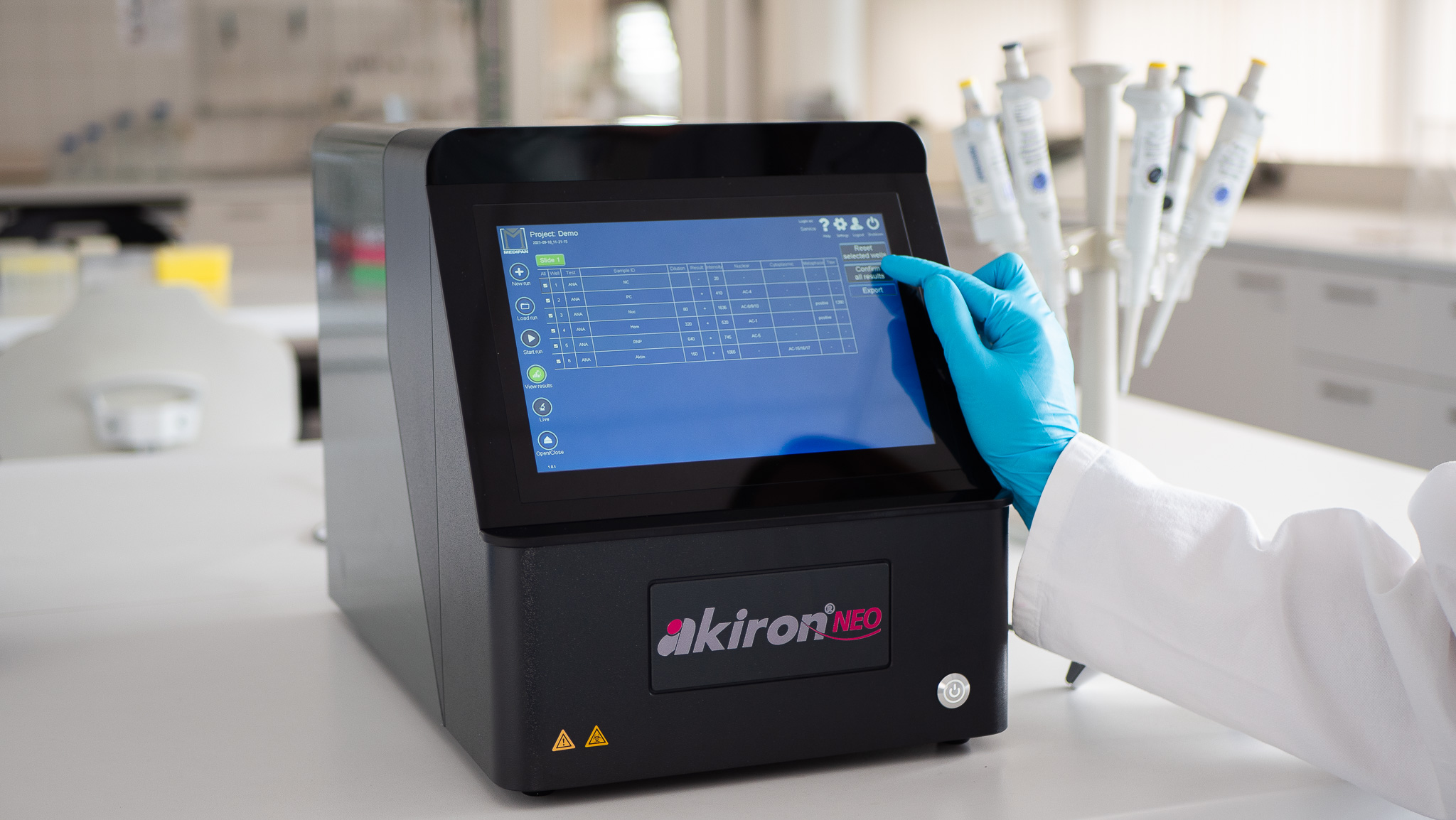

4450 – akiron® NEO
Automated System for Standardized Immunofluorescence Imaging
Available Downloads:
| Indication | Autoimmune diseases |
|---|---|
| Dimensions / Weight | 32 cm x 28 cm x 46 cm (L x W x H) / 15 kg |
| Capacity | 2 Slides |
| Optics | LED (3 wavelengths) |
| Objective | 20x |
| Filters | blue / green / red |
| Analysis | Cell and Tissue Imaging, Cell Pattern Recognition, Intensity Evaluation, End-Point Titer Determination |
| Parameters | ANA, ANCA, nDNA, CytoBead®, Tissue Sections (e.g. EmA) |
| Report | Overall and Single Report, Documentation, Archival Storage |
| Connectivity | Pipettor and bidirectional to LIS |
